Description

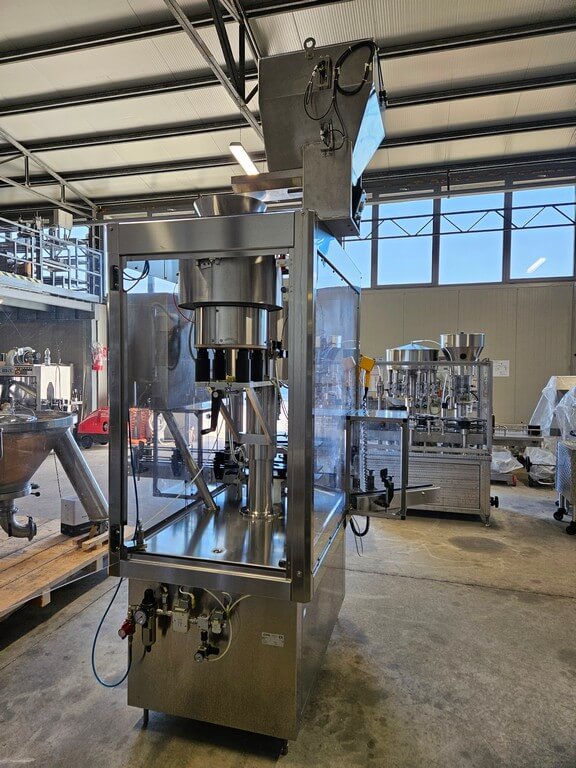

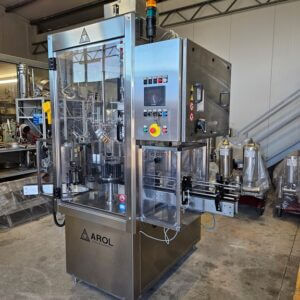

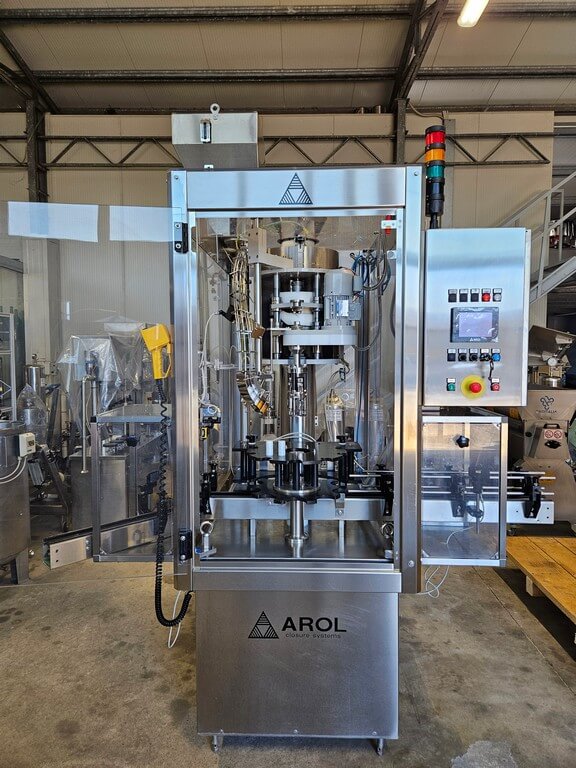

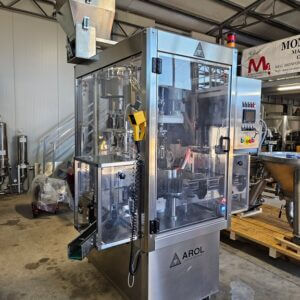

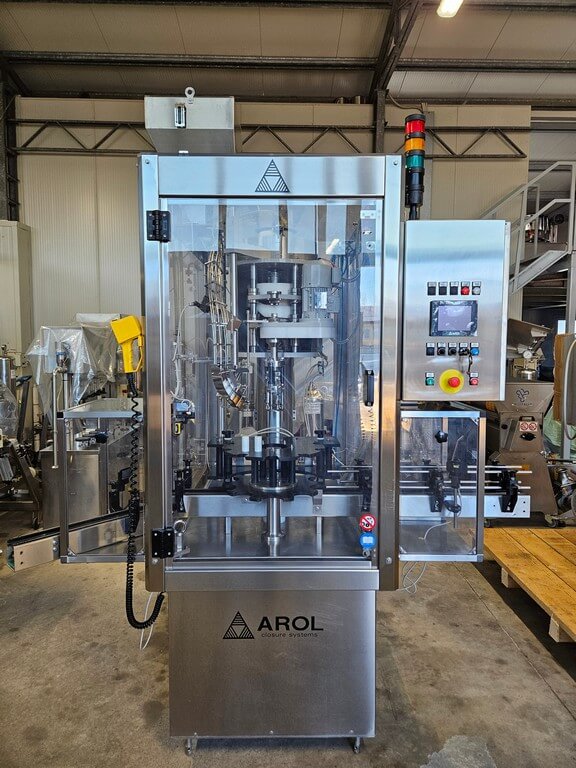

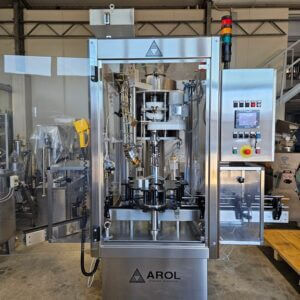

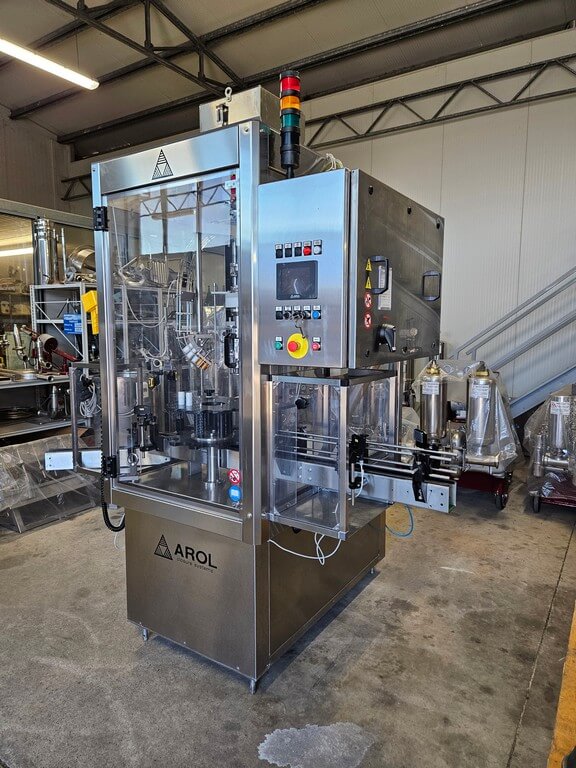

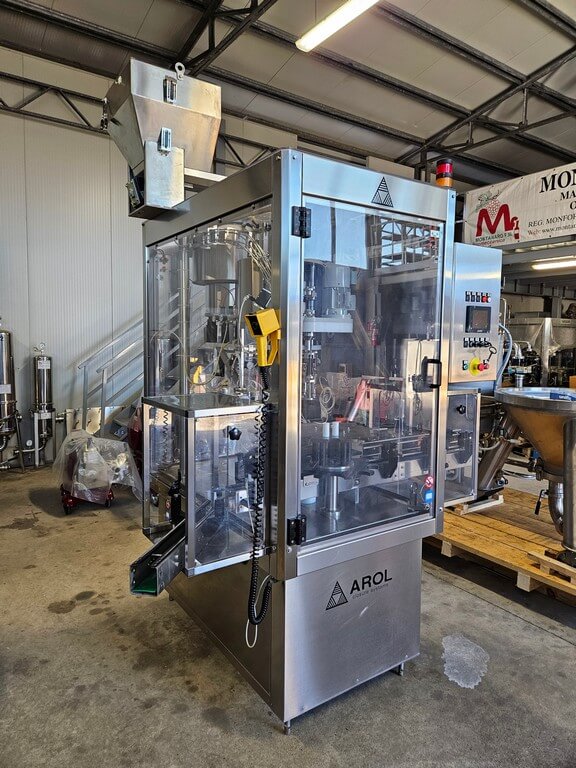

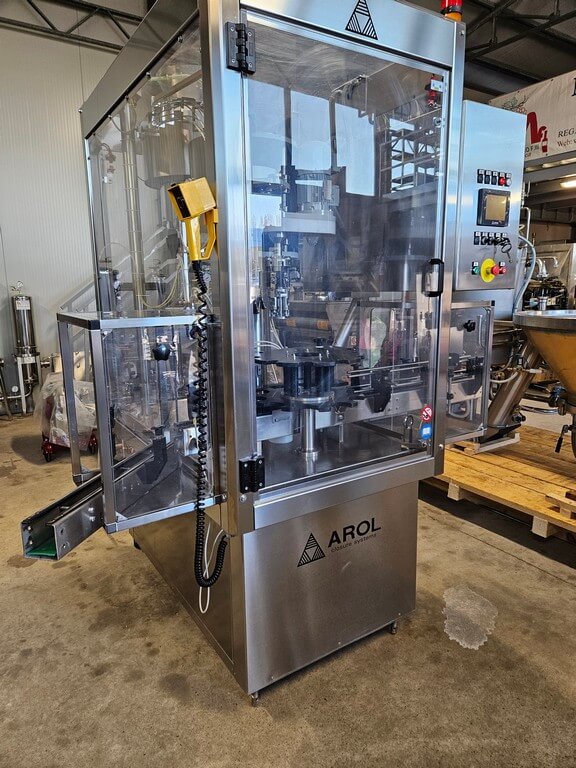

Arol capper Model EAGLE VPA for single-head aluminum screw cap.
Equipped for screw caps Ø 30

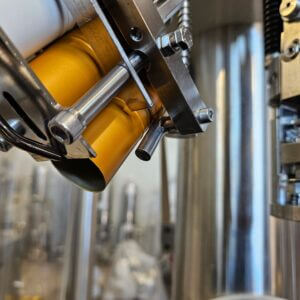

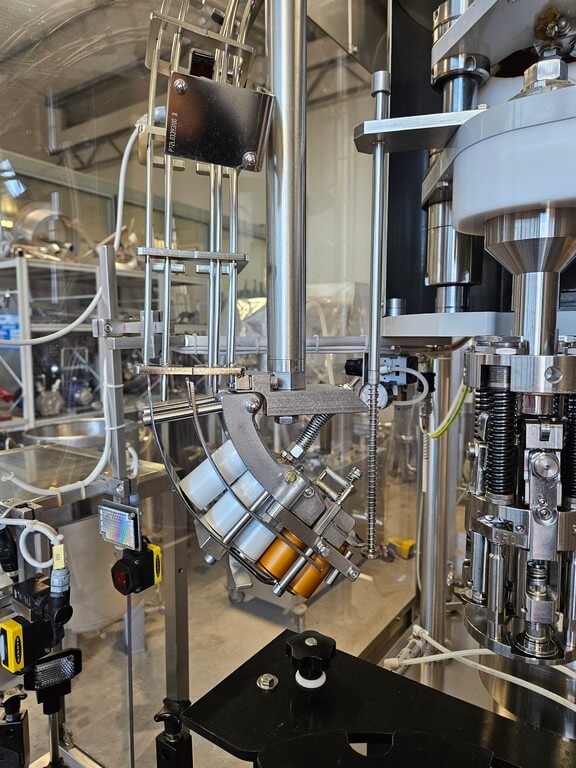

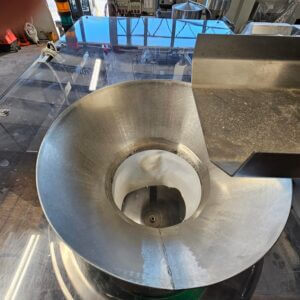

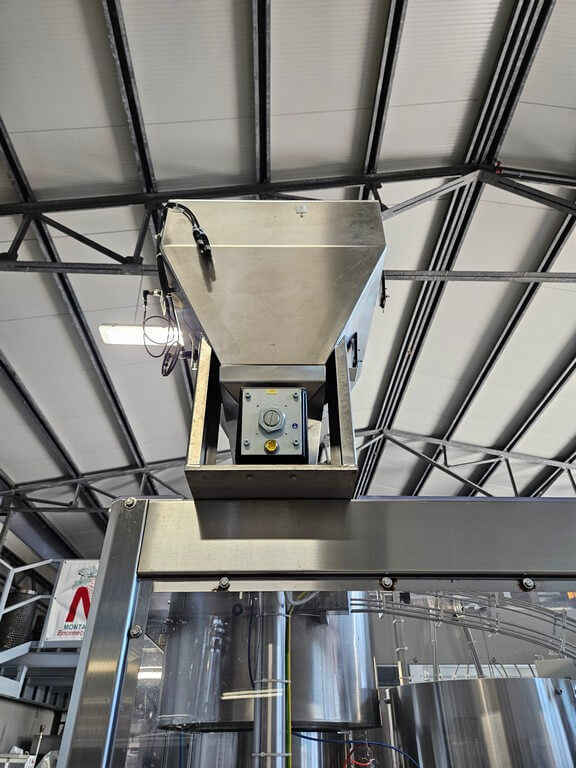

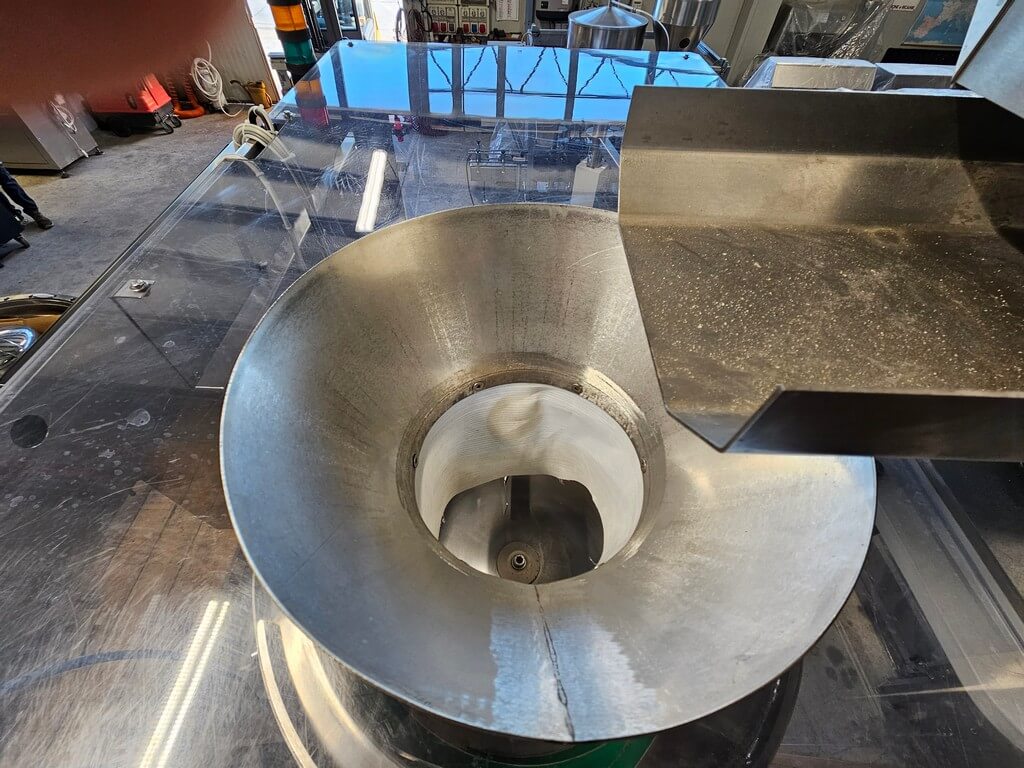

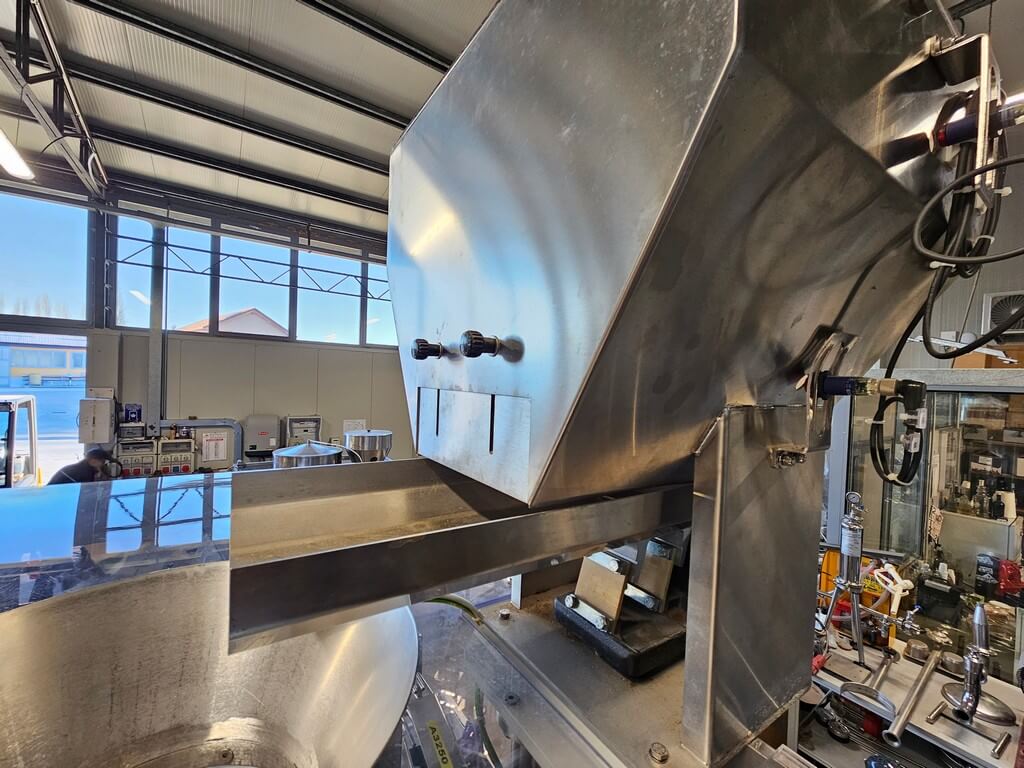

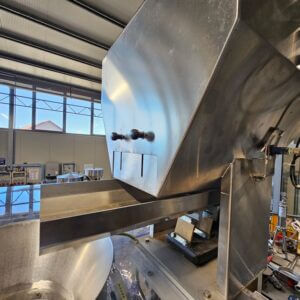

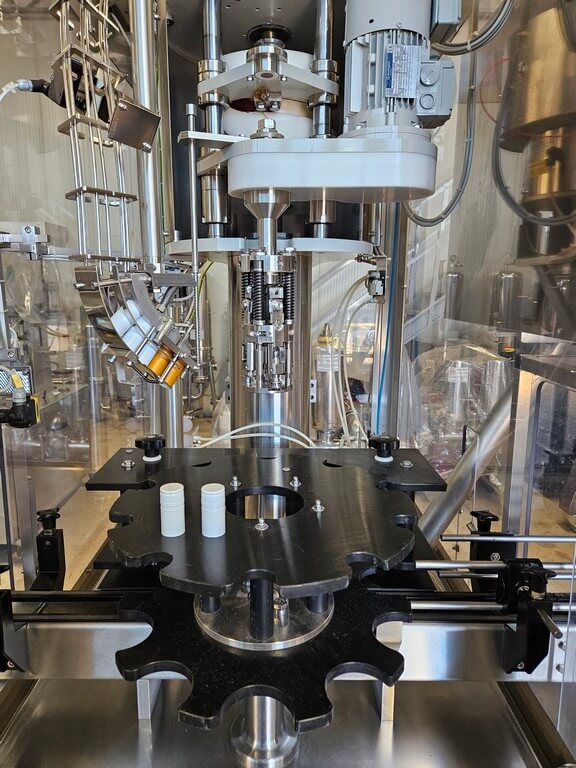

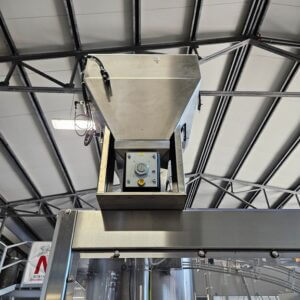

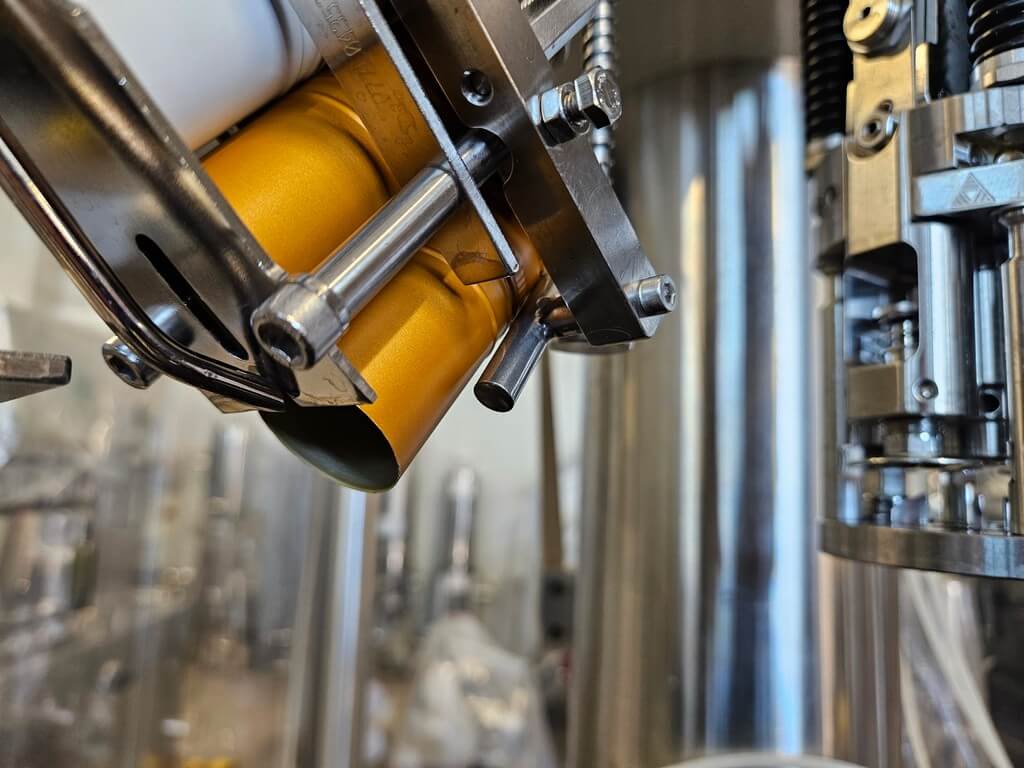

Drop channel and head for taking capsules on the fly.

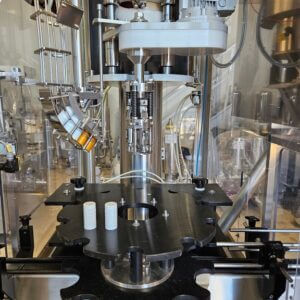

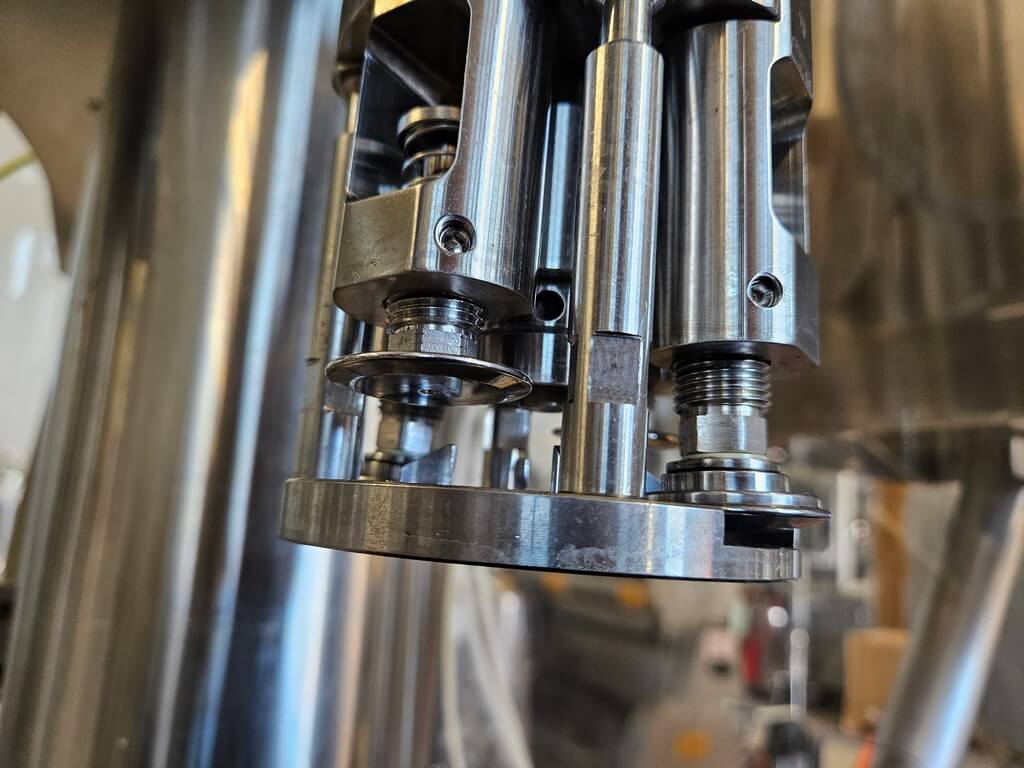

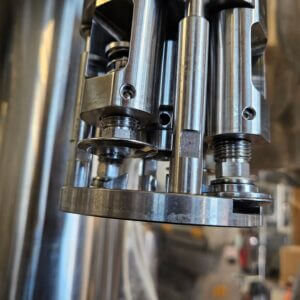

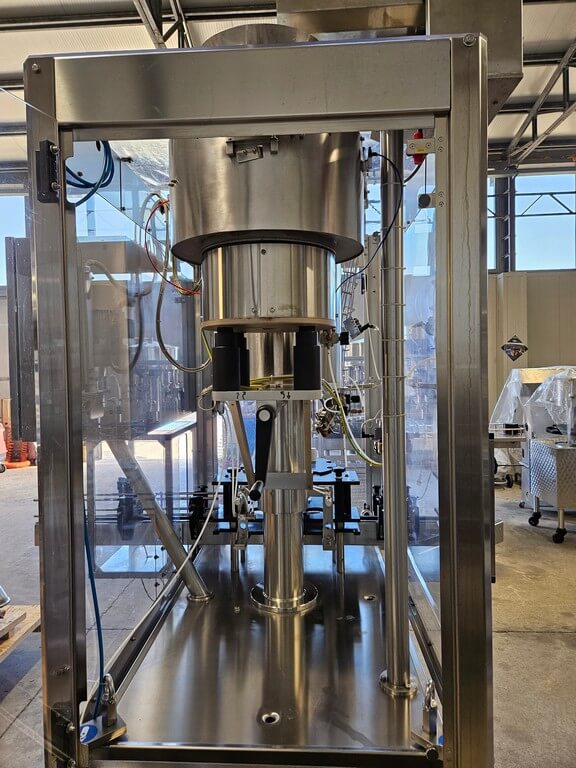

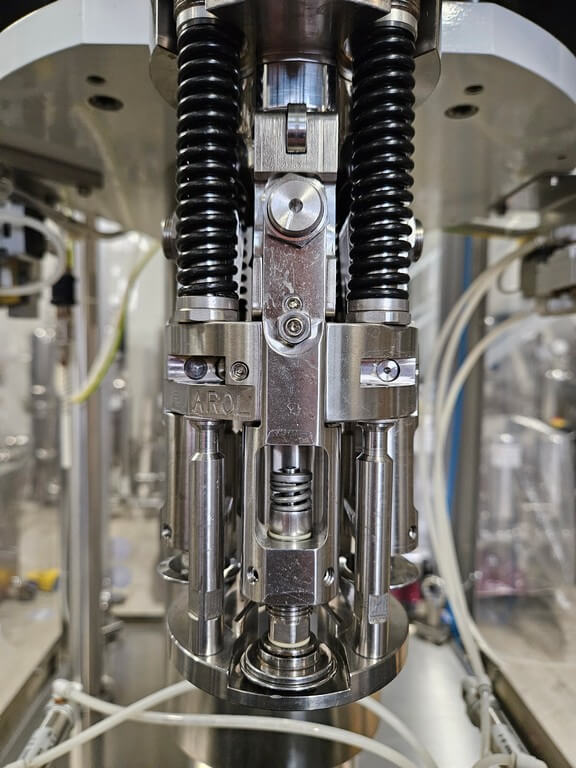

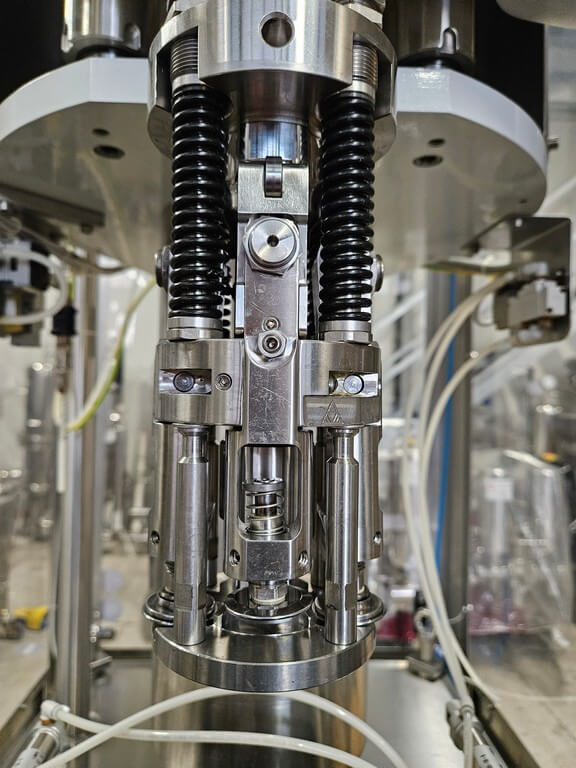

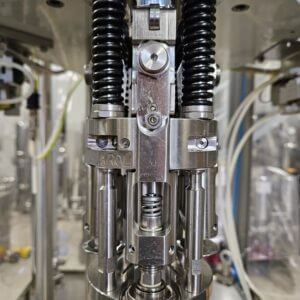

Four-roller stainless steel threading head with no cap-no roll system.
On the machine there is a device suitable for introducing inert gas into the neck of the bottle before capping.
Entrance and exit protection tunnels complete with bottle entry and exit photocells.
Mechanical height adjustment.

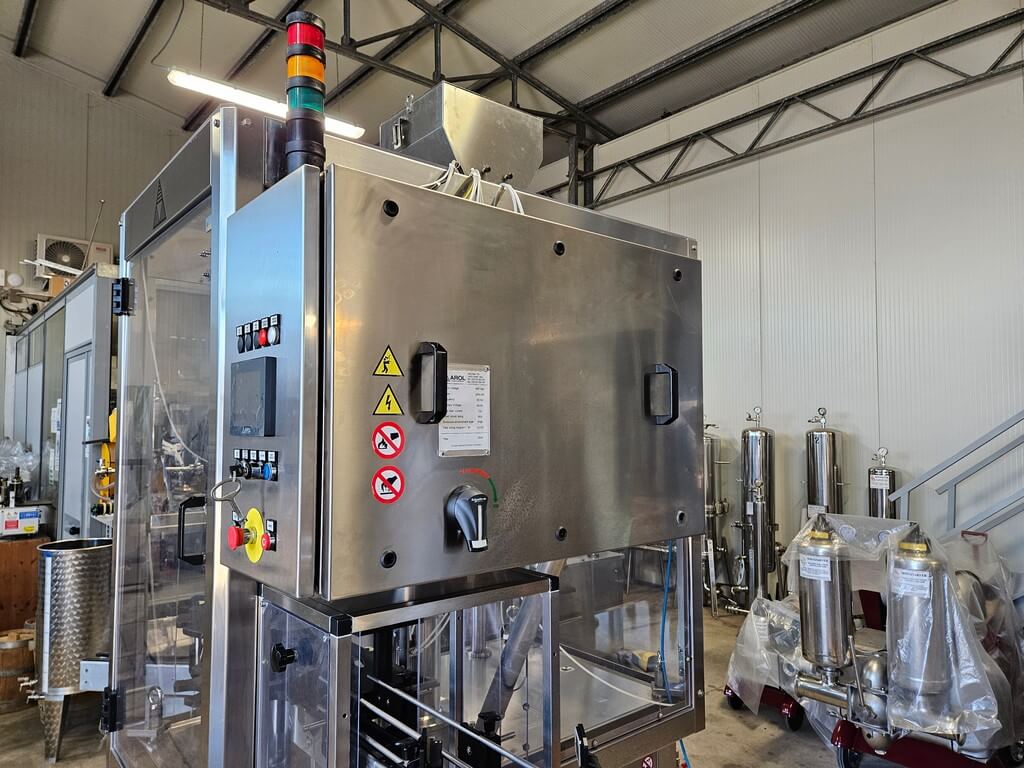

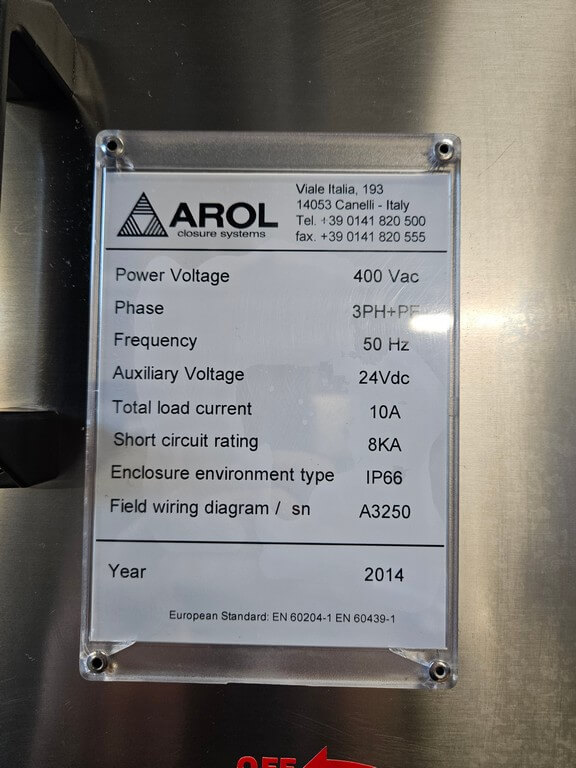

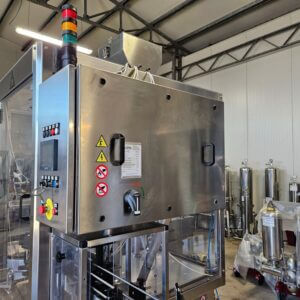

Electrical panel with control panel with touch screen interface.
Complete with inverter for travel speed adjustment.
Complete with inverter for threading head speed adjustment.
Stainless steel base complete with CE compliant safety protections with use and maintenance manual and electrical diagram.
Year 2014
Production approximately 2500 b/h.
With 4 cylindrical glass bottle sizes (Ø61, 66.5, 74.5, 81).
Dimensions: Length 2350mm x Width 1550mm x H 3000mm approximately. For transport it is possible to lower the height to approximately 2500mm.
Weight approximately 900 kg.
