Description

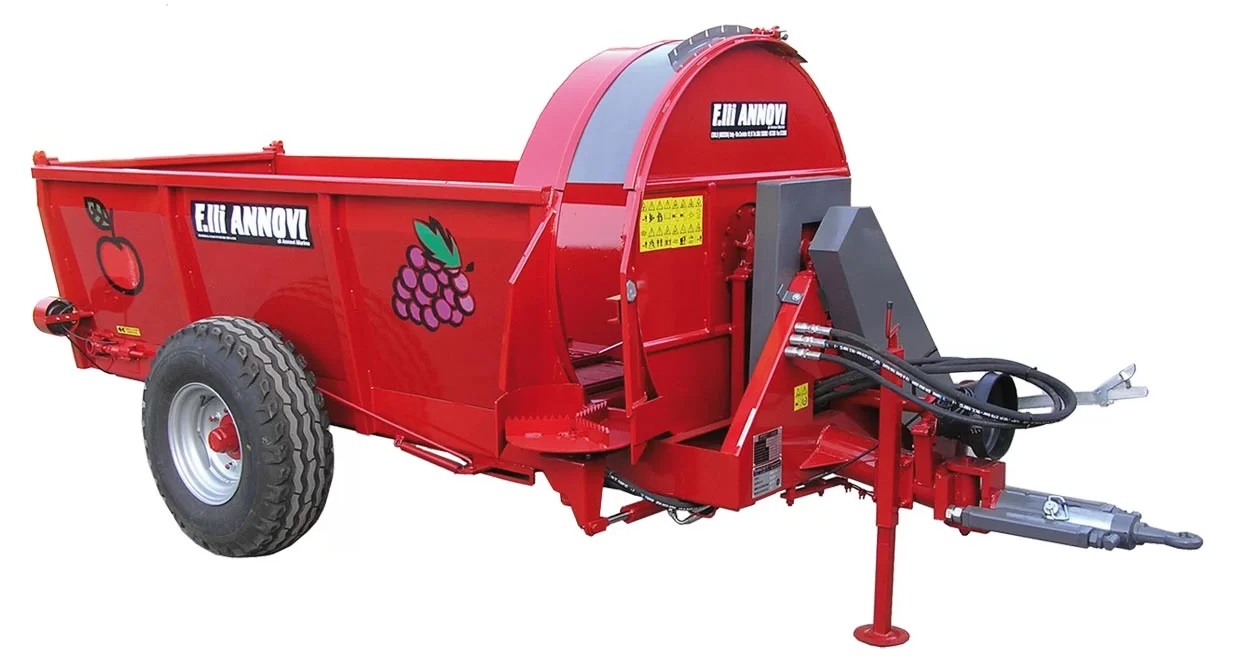

This compact manure spreader for orchards and vineyards is designed for use between narrow rows. Manure is applied locally at the base of trees, with a spreading length adjustable from 1 to 4 meters. To facilitate row entry and exit, the machine can be equipped with a mechanical steering system to reduce the working space (following the tractor’s tracks). It can be used with any type of organic fertilizer (manure, compost, digestate, plant waste, etc.). The spreading rate is adjustable.
TECHNICAL DATA
Load capacity: 2.8 m³
Spreading length: 1–5 m
Tires: 10.75 x 15.3
Weight: 900 kg
Turbine diameter: 1000 kg 1.25 m
Side wall height: 0.70 m
Maximum height: 1.60 m
Deck length: 2.80 m
Maximum length: 4.60 m
Maximum width: 1.60 m
HP: 40 / 50
Standard equipment:
Side roller
Fixed drawbar
Mechanical chain conveyor with 3 speeds
Optional:
Brake system (mechanical/hydraulic)
Light
Mechanical steering wheel
Side plate for positioning a mechanical or hydraulic manure spreader.
Hydraulic tilt of the hydraulic plate
Hot-dip galvanizing of the side walls or the entire frame
Rear retractable door moved by conveyor chains.
PTO
Hydraulic conveyor chains with adjustable speed
