Description
DESCRIPTION
Production line for Kozinachnaya, Halvichnaya, Irisovaya and other candy and food products. Capacity 180 kg/hour
Line composition:
1. KVEPM Boiler (Electric Cooking Boiler Turning Over with Product Stirrer Capacity 80 liters)
• Volume: 80 l
• Amount of kneaded confectionery mass (seeds, peanuts, sesame): 20-25kg
• Material of container and stirrer: food grade stainless steel
• Number of mixers: 1
• Cooking time for caramel including kneading: 15-20 minutes
• Number of heating zones: two (wall, bottom)
• Installed/actual electrical power: 19/15 kW
• Stirrer drive: gear motor (via “STOP”), reversible
• Method of turning the boiler over: manual, gearbox with braking
• Temperature control: TSP1 resistance thermometers, OVEN-2TRM1 thermostat
• Dimensions / Height*Width*Length: 1300x1200x800

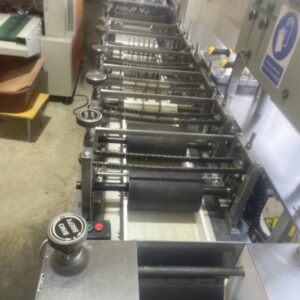

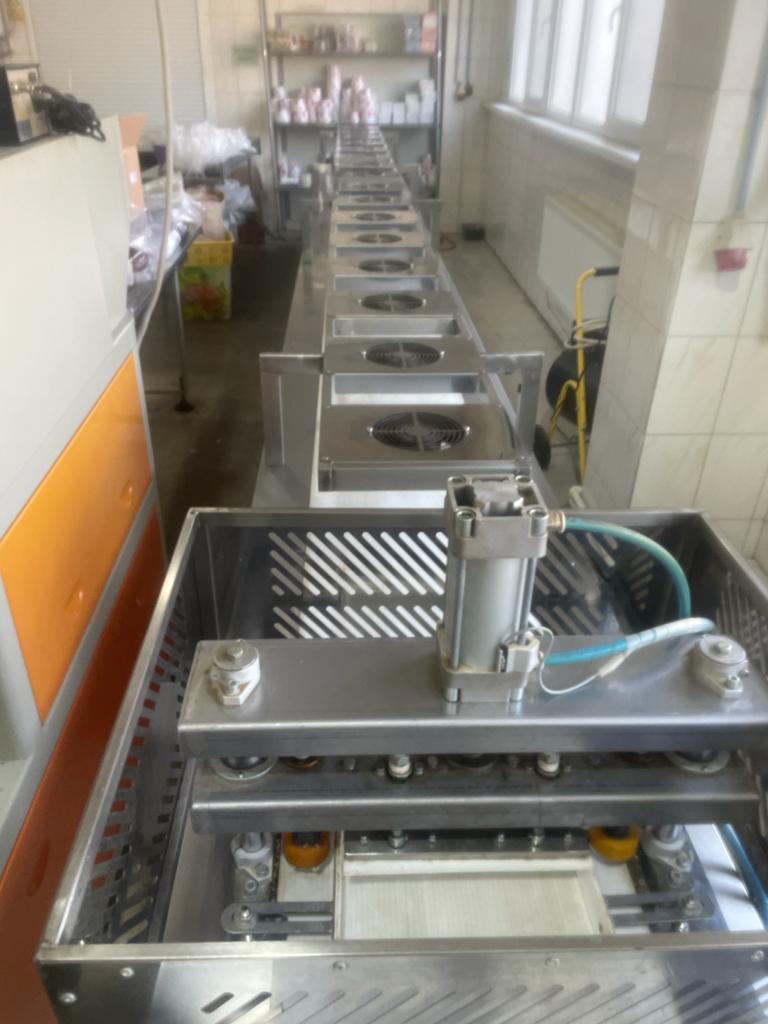

2. Molding Cooling Cutting Machine
Intended for:
— molding the goat mass into a layer of sunflower kernels, peanuts, exploded rice, and small corn.
– molding the toffee mass with notches
– halvicha mass
— dividing the formation into briquettes of different sizes
— pre-cooling of briquettes.
• Productivity: 35-120 kg/hour
• Power consumption: Up to 2.30 kW.
• Conveyor type machine: on a belt with or without an adhesive coating.
• Number of drives: 2 gear motors (1-Tape, 1-forming shafts and hopper shafts)
B8og8g7a
• Cooling: 8 fans on top
• Direction of movement of the belt and shafts: Forward
• Number of shafts: Forming shafts – 2 pcs. Slitting shafts – 2 pcs. The quantity can be increased according to customer requirements.
• Cutting along: shafts
• Cross cutting: Carried out by pneumatic Guillotines. Quantity -2 pcs. (Cutting – 1 piece. Drawing – 1 piece)
• Additional functions: Frequency converters – 2 pieces for forming and hopper shafts. (Speed adjustment)
• Dimensions / Height*Width*Length: 1600*850*7500mm
3. Additional nodes
• Separator of prepared and cut bars from each other.
• Control of the weight of rows of briquettes and rejection of products that do not pass weight control.
• Automatic piece feeding to a Flow-Pack type filling machine
