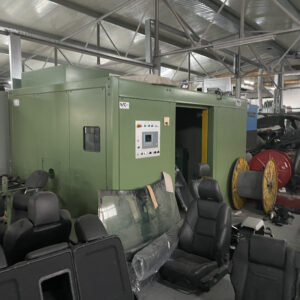

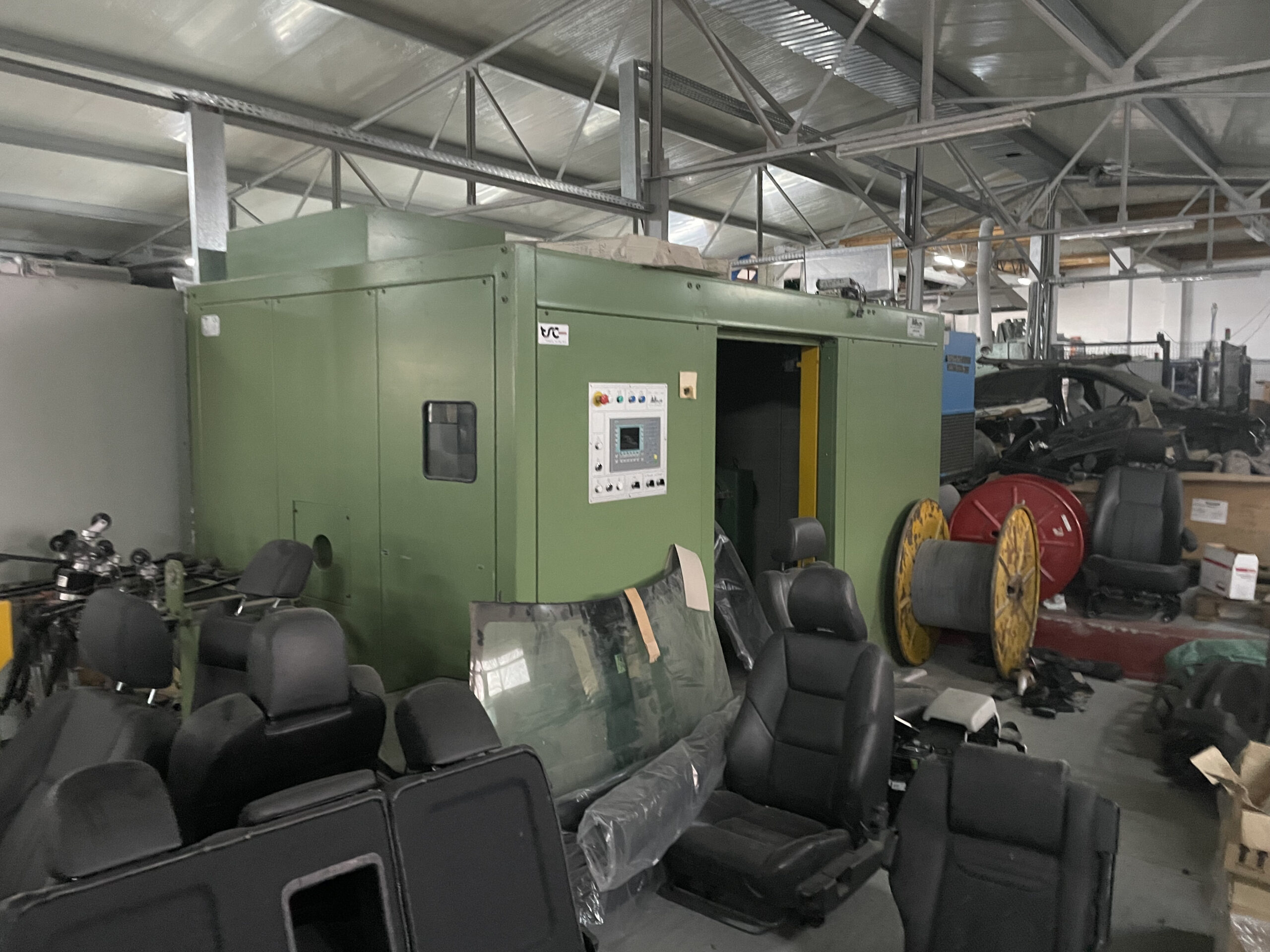

Description
1. Frame wrap
2. Horizontal winders
3. Towing compensator
4. Caterpillar
5. Drying station

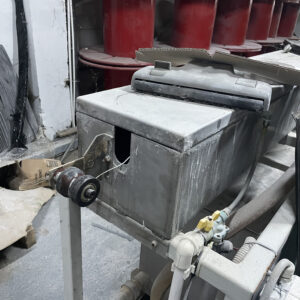

6. Tank for rinsing and recovery
7. Horizontal section of the drying oven (outlet section)
8. Horizontal section of drying oven (standard)
9. Tension unit d350 (kabstan)
10. Pair of motorized dewinders “Defile”
11. Speed compensator
12. Unrolling easel
13. ? Cable crimping machine AVM-E-800
Maximum coil size – 1000mm
Minimum coil size – 300mm
Maximum roll width – 500mm
Minimum roll width – 270mm
Maximum reel weight – 500 kg
Minimum roll weight – 5 kg
The maximum winding speed from 500 kg reels is 200 mt/min.
Voltage – 380 V + neutral + ground – 50 Hz
Dimensions – see layout
14. Automatic machine for unwinding reels with electric cable. CVMC-E-1250-CMO-P8
Technical characteristics
UNWINDING
Maximum coil size -1250 mm
The minimum reel size is 800 mm (600 mm, but with a speed reduction of 20%).
Maximum roll width – 980mm
Minimum roll width – 500mm
The maximum weight of the reel is 1000 kg.
The maximum unwinding speed from 1000 kg reels is 500 mt/min.
Installed power – 24 kW
Voltage – 380 V + neutral + ground – 50 Hz
Dimensions – see layout
COMPENSATOR
Compensator length – 6 Mt
Minimum air pressure in power supply – 6 Bar
Air pressure – 1-6 Bar
Pulley diameter – 360 mm
Minimum applicable thrust – 8 kg
15. BMB 400 2P. This machine is a semi-automatic machine suitable for producing electrical cable reels and bobbins.
Technical characteristics
Winding
Minimum product diameter – 2 mm
Maximum product diameter – 12 mm
Internal diameter of the coil – 160 mm
External diameter of the roll – 400 mm
Maximum roll height – 150 mm
Maximum roll weight – 25 kg
Min. Max. roll length – 5 – 1500 m
Voltage – 380 V + neutral + ground – 50 Hz
Atmospheric pressure – 6 Atmospheres
Maximum air consumption for each cycle – 2 liters per cycle
Dimensions – see layout
WINDING
Minimum product diameter – 2 mm
Maximum product diameter – 12 mm
Coil hole diameter – 50mm
Drive hole diameter – 9 mm
Maximum outer diameter of the roll – 400 mm
Maximum roll height – 200 mm
Maximum roll weight – 25 kg
Min/max roll length – 5 – 1500 m
Voltage – 380 V + neutral + ground – 50 Hz
Atmospheric pressure – 6 Atmospheres
Maximum air consumption for each cycle – 2 liters per cycle
