Description
Complete MILL GRINDER – SHEEPLINE SL 2500 FOOD PREPARATION COMPLEX
Consisting of:
CYLINDER MILL
HARMENIER
VOLUMETRIC
LOADING SCREWS
CENTRAL CONTROL PANEL
Information:
THIS ASSEMBLY IS DESIGNED TO COMBINATE THE PHASE OF CRUSHING (MILLING) AND MIXING WITH THE POSSIBILITY OF ADDING AND OTHER ELEMENTS.
THE MIXED PRODUCT CAN STAY IN THE HARMENIER AND BE USED ACCORDING TO THE NEEDS OF THE LIVESTOCK.
THE COMPLEX SL 2500 HAS:
CYLINDER MILL
5.5 KW (7.5 HP) WITH EFFICIENCY UP TO 2500 kg / hour.
The CYLINDER MILL comes with two roller crushers, of which one is adjustable, so to adjust it according to the crushed material , in order to regulate the thickness of said material.
There is a special spring at the base of the adjustable cylinder crusher which ensures controlled pressure during the crushing process ( milling ) .
The material does not flour and does not get heated. It is ideal for goats and sheep.
HARMANIER
4 KW (5.5 HP) WITH A CAPACITY OF APPROXIMATELY 1800 kg .
THE MIXTURE HAS A RECEPTOR MOUTH FOR (SOY – BRANCH – SALT ETC.) WHICH IS BEING MIXED WITH THE ALREADY PROCESSED MATERIAL OF THE CYLINDER.
IT ALSO HAS AN EXPORT HUNCH (Φ 170) WITH SHUTTER FOR ITS FULL DISCHARGE, AS WELL AS MATERIAL STATION WINDOW.

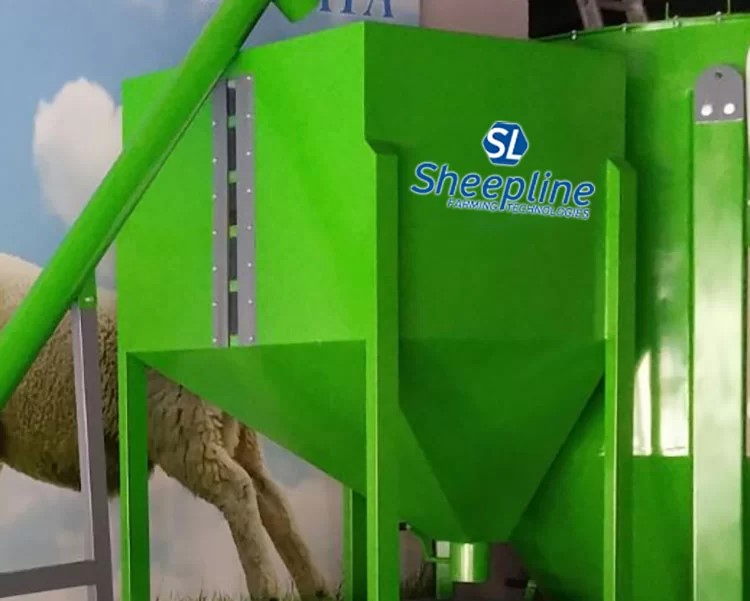

VOLUMETRIC
1 CUBIC FOR WEIGHTING MATERIALS FOR CRUSHING (MILLING) WITH MATERIAL LEVEL WINDOW
LOADING SCREWS
Φ114 (1,5 HP) WITH MATERIAL HATCH.
THE LOADING SCREW IS WHEELED AND CAN SERVE NEEDS OF LOADING CEREALS AND IN OTHER AREAS OF THE LIVESTOCK UNIT (eg FIG.
CONTROL PANEL
THE SHEEPLINE SL 2500 FEED PRODUCTION COMPLEX IS EQUIPPED WITH A CENTRAL FUNCTIONAL CONTROL PANEL
How It Works
THROUGH THE LOADING SCREWS, WE TRANSFER TO THE VOLUMETRIC MATERIAL THAT WE WANT TO CRUSH (GRIND) AND THEN WE PUT THE ROLLING AND THE ROLL IN OPERATION.
AFTER WE HAVE ADJUSTED THE CYLINDER MILL, WE ALLOW THE MATERIAL TO PASS THROUGH THE CYLINDERS AND TO ENTER READY (CUT) TO HARMANIER.
AT THE SAME TIME AS THE MATERIAL IS CRUSHED (GRINDED) WE CAN ADD THE ADDITIONAL MATERIALS
ONCE WE ADD ALL MATERIALS IN CHARMANIER WE CLOSE DOWN DOWN THE ROLLER MILL AND ALLOW 10 TO 15 MINUTES MIXING IN CHARMANIER, AFTER 15 MINUTES MATERIALS ARE READY TO USE.
